RF3021 - REFLECTIVE SWITCH

Product Overview

RF Micro Devices

Datasheet Details

Part number	RF3021
Manufacturer	RF Micro Devices
File Size	844.44 KB
Description	REFLECTIVE SWITCH
Datasheet	RF3021 Datasheet

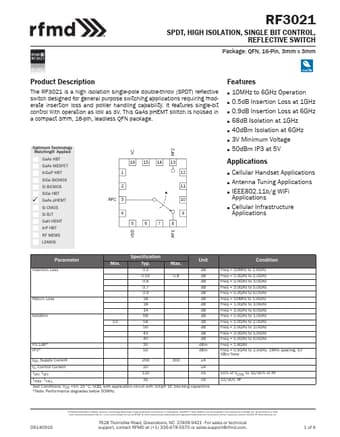

Additional preview pages of the RF3021 datasheet.

Product details

Description

The RF3021 is a high isolation single-pole double-throw (SPDT) switch designed for general purpose switching applications requiring moderate insertion loss and power handling capability.

Features

single-bit control with operation as low as 2.5 V. This GaAs pHEMT switch is housed in a compact 3 mm, 16-pin, leadless QFN package. Features.
Optimum Technology Matching® Applied GaAs HBT GaAs MESFET InGaP HBT SiGe BiCMOS Si BiCMOS SiGe HBT GaAs pHEMT Si CMOS Si BJT GaN HEMT InP HBT RF MEMS LDMOS.
10 MHz to 6 GHz Operation 0.5 dB Insertion Loss @ 1 GHz 1 dB Insertion Loss at 6 GHz 58 dB Isolation at 1 GHz 36 dBm Isolation a.
