RF3110 Datasheet - RF Micro Devices

TRIPLE-BAND GSM/DCS/PCS POWER AMP MODULE

RF3110 Features

* Complete Power Control Solution

* Single 2.9V to 5.5V Supply Voltage 12 DCS IN 1 BAND SELECT 2 TX ENABLE 3 VBATT 4 VREG 5 VRAMP 6 GSM IN 7 8 VCC2 9 GSM OUT 10 VCC OUT 11 DCS OUT

* +35dBm GSM Output Power at 3.5V

* +33dBm DCS/PCS Output Power at 3.5V

* 55%

RF3110 General Description

The RF3110 is a high-power, high-efficiency power amplifier module with integrated power control. The device is self-contained with 50 Ω input and output terminals. The power control function is also incorporated, eliminating the need for directional couplers, detector diodes, power control ASICs an.

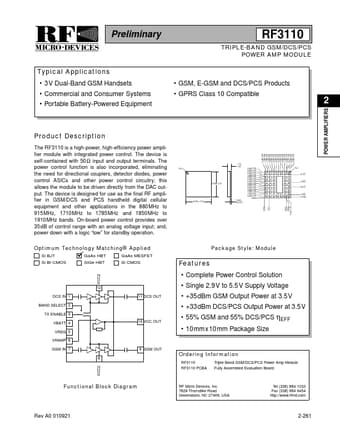

RF3110 Datasheet (198.16 KB)

RF3110 Datasheet Preview — Preview of RF3110 PDF

Datasheet Details

Part number:

RF3110

Manufacturer:

RF Micro Devices

File Size:

198.16 KB

Description:

Triple-band gsm/dcs/pcs power amp module.
Preliminary 2 Typical Applications 3V Dual-Band GSM Handsets Commercial and Consumer Systems Portable Battery-Powered Eq.
