RF3133 QUAD-BAND GSM850/GSM/DCS/PCS POWER AMP MODULE

The RF3133 is a high-power, high-efficiency power amplifier module with integrated power control. The device is self-contained with 50 Ω input and output terminals. The power control function is also incorporated, eliminating the need for directional couplers, detector diodes, power control ASICs an.

RF3133 Features

* Complete Power Control Solution

* Single 2.9V to 5.5V Supply Voltage

* +35dBm GSM Output Power at 3.5V

* +33dBm DCS/PCS Output Power at 3.5V

* 55% GSM and 52% DCS/PCS ηEFF SiGe Bi-CMOS 12 DCS IN 1 BAND SELECT 2 TX ENABLE 3 VBATT 4 VREG 5 VRAMP 6 GSM IN 7 8

RF3133_RFMonolithics.pdf

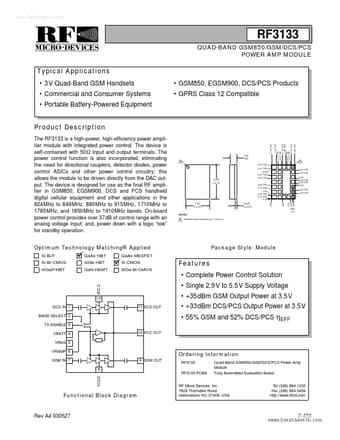

Preview of RF3133 PDF
