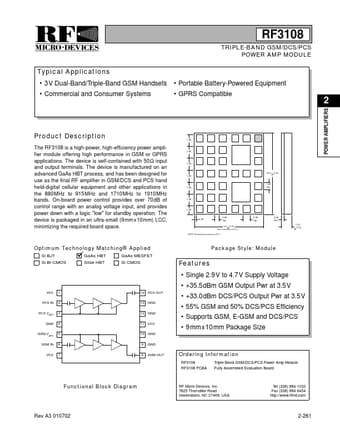

RF3108 Datasheet, Module, RF Micro Devices

RF3108 Features

• Module
• Single 2.9V to 4.7V Supply Voltage
• +35.5dBm GSM Output Pwr at 3.5V VCC PCS IN PCS VAPC GND GSM VAPC GSM IN VCC 1 2 3 4 5 6 7 14 13 12 11 10 9 8 PCS OUT GND GND V

PDF File Details

Part number:

RF3108

Manufacturer:

RF Micro Devices

File Size:

195.79kb

Download:

📄 Datasheet

Description:

Triple-band gsm/dcs/pcs power amp module. The RF3108 is a high-power, high-efficiency power amplifier module offering high performance in GSM or GPRS applications. The device

RF3108 Application

• Applications
• 3V Dual-Band/Triple-Band GSM Handsets
• Commercial and Consumer Systems
• Portable Battery-Powered Equipment
