RF3140 Datasheet - RF Monolithics

QUAD-BAND GSM850/GSM900/DCS/PCS PCS

RF3140 Features

* Complete Power Control Solution

* Single 3.0V to 5.5V Supply Voltage

* +35dBm GSM Output Power at 3.5V

* +33dBm DCS/PCS Output Power at 3.5V SiGe Bi-CMOS 12 DCS/PCS IN 1 BAND SELECT 2 TX ENABLE 3 VBATT 4 VREG 5 VRAMP 6 GSM850/GSM900 IN 7 8 VCC2 9 GSM850/GSM900 OUT

RF3140 General Description

The RF3140 is a high-power, high-efficiency power amplifier module with integrated power control. The device is self-contained with 50 Ω input and output terminals. The power control function is also incorporated, eliminating the need for directional couplers, detector diodes, power control ASICs an.

RF3140 Datasheet (278.28 KB)

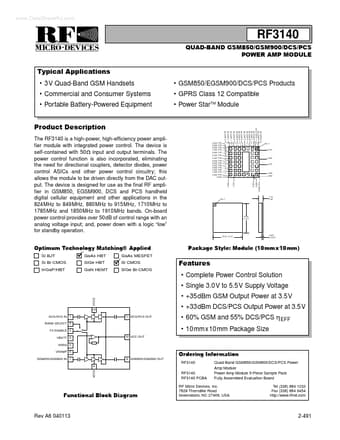

RF3140 Datasheet Preview — Preview of RF3140 PDF

Datasheet Details

Part number:

RF3140

Manufacturer:

RF Monolithics

File Size:

278.28 KB

Description:

Quad-band gsm850/gsm900/dcs/pcs pcs.
www.DataSheet4U.com RF3140 0 Typical Applications 3V Quad-Band GSM Handsets Commercial and Consumer Systems Portable Ba.
