RF3146D DUAL-BAND GSM900/DCS POWER AMP MODULE

The RF3146 is a high-power, high-efficiency power amplifier module with integrated power control. The device is a self-contained 7mmx7mmx0.9mm lead frame module (LFM) with 50 Ω input and output terminals. The power control function is also incorporated, eliminating the need for directional couplers,.

RF3146D Features

* Integrated VREG

* Complete Power Control Solution

* +35dBm GSM Output Power at 3.5V DCS IN 37 BAND SELECT 40 TX ENABLE 41 VBATT 42 VBATT 43 VRAMP 45 GSM IN 48 Fully Integrated Power Control Circuit 31 DCS OUT

* +33dBm DCS Output Power at 3.5V

* 60% GSM an

RF3146D Datasheet (276.98 KB)

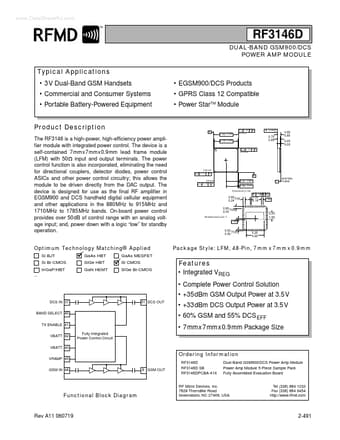

Preview of RF3146D PDF

Datasheet Details

Part number:

RF3146D

Manufacturer:

RF Micro Devices

File Size:

276.98 KB

Description:

Dual-band gsm900/dcs power amp module.
