RF3146 Datasheet - RF Micro Devices

RF3146 QUAD-BAND GSM850/GSM900/DCS/PCS POWER AMP MODULE

The RF3146 is a high-power, high-efficiency power amplifier module with integrated power control. The device is a self-contained 7mmx7mmx0.9mm lead frame module (LFM) with 50 Ω input and output terminals. The power control function is also incorporated, eliminating the need for directional couplers,.

RF3146 Features

* Integrated VREG

* Complete Power Control Solution

* +35dBm GSM Output Power at 3.5V DCS/PCS IN 37 BAND SELECT 40 TX ENABLE 41 VBATT 42 VBATT 43 VRAMP 45 GSM IN 48 Fully Integrated Power Control Circuit 31 DCS/PCS OUT

* +33dBm DCS/PCS Output Power at 3.5V

RF3146_RFMicroDevices.pdf

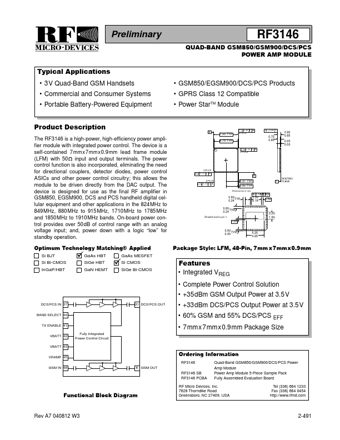

Preview of RF3146 PDF
RF3146 Datasheet Preview Page 2 RF3146 Datasheet Preview Page 3

Datasheet Details

Part number:

RF3146

Manufacturer:

RF Micro Devices

File Size:

317.67 KB

Description:

Quad-band gsm850/gsm900/dcs/pcs power amp module.
