RF5222 Datasheet - RF Micro Devices

RF5222 - LINEAR POWER AMPLIFIER

The RF5222 is a linear, medium-power, high-efficiency, two-stage amplifier IC designed specifically for battery-powered WLAN applications such as PC cards, mini PCI, and compact flash applications.

The device is manufactured on an advanced InGaP Gallium Arsenide Heterojunction Bipolar Transistor (HB

RF5222 Features

* RF IN 1 Input Match Interstage Match 2Fo Filter 6 VC2

* Single Power Supply 3.0V to 4.2V 26dB Minimum Gain, Input Matched to 50 Ω 2.4GHz to 2.5GHz Frequency Range 11g POUT =+17dBm@3% Typ EVM, 125mA IEEE802.11b/g/n WLAN Applications 2.5GHz ISM Band Applicat

RF5222_RFMicroDevices.pdf

Preview of RF5222 PDF

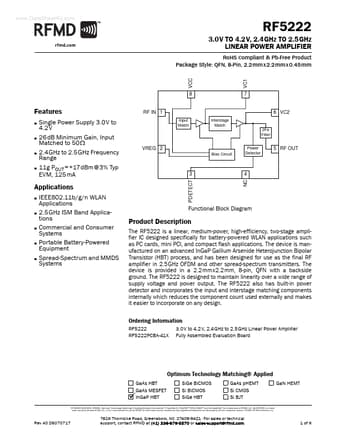

RF5222 Datasheet Preview Page 2 RF5222 Datasheet Preview Page 3

Datasheet Details

Part number:

RF5222

Manufacturer:

RF Micro Devices

File Size:

242.65 KB

Description:

Linear power amplifier.
