RF5288 - DUAL-BAND FRONT-END MODULE

RF5288 Description

RF5288 3.0V TO 3.6V, DUAL-BAND FRONT-END MODULE Package Style: 32-Pin, 5mmx5mmx0.9mm VCC PDET5 GND VCC VCC VCC GND TX5_IN .
The RF5288 is a single-chip dual-band integrated front-end module (FEM) for high-performance WiFi applications in the 2.

RF5288 Features

* Single-Module Radio Front-End
* Single Supply Voltage 3.0V to 3.6 V
* Integrated 2.5GHz & 5GHZ PA’s, Diplexer LNA for both High and Low Band, Filters & Switches for TX & RX
* POUT=18dBm, 11g, OFDM,

RF5288 Applications

* IEEE802.11a/b/g/n WiFi Applications
* Single-Chip RF Front-End Module
* 2.5GHz and 5GHz ISM Bands Applications
* WiFi Systems
* Portable Battery-Powered Equip- ment 32 31 30 29 28 27 26 25 SWTX 1 24 GND GND 2 ANT 3 Diplexer GND 4 PA5 LNA5 23 RX5 22 PAEN5 21 LNAEN5 SWR

📥 Download Datasheet

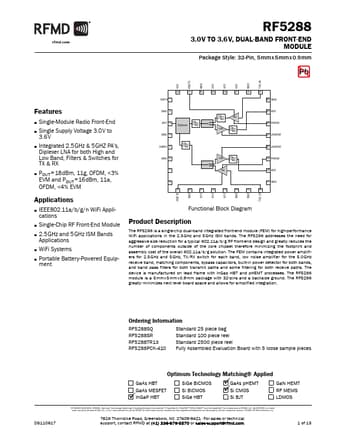

Preview of RF5288 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RF5288
Manufacturer
RF Micro Devices
File Size
1.15 MB
Datasheet
RF5288-RFMicroDevices.pdf
Description
DUAL-BAND FRONT-END MODULE
