RFDA0016 DIGITAL CONTROLLED VARIABLE GAIN AMPLIFIER

RFDA0016 Description

RFDA0016Digital Controlled Variable Gain Amp 50 to 1000 MHz, 6 bit 0.5dB LSB Control RFDA0016 DIGITAL CONTROLLED VARIABLE GAIN AMP 50 TO 1000MHZ, 6.
RFMD’s RFDA0016 is a digital controlled variable gain amplifier featuring high linearity over the entire gain control range.

RFDA0016 Features

* Frequency Range 50MHz to 1000 MHz
* 6-Bit Digital Step Attenuator
* SPI Serial Control Programming
* Max Gain=38.5dB at 150MHz
* Gain Control Range=31.5dB (0.5dB Step Size)
* Class 1C HBM ESD Rating
* High OIP3=42dBm at 150MHz
* High P1dB=20dBm at 150 MHz
* Sing

RFDA0016 Applications

* Transceiver IF DVA
* Cellular, PCS, GSM, UMTS
* Wireless Data, Satellite Terminals RFIN 1 GND 2 Vcc_AMP1 3 AMP SPI GND 4 GND 5 GND 6 DSA GND 7 21 RFOUT AMP 20 GND 19 GND 18 GND 17 GND 16 GND 15 GND NC GND GND GND GND GND GND 8 9 10 11 12 13 14 Functional Block Diagram E-pad

📥 Download Datasheet

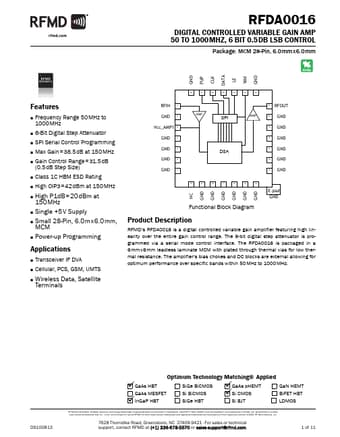

Preview of RFDA0016 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RFDA0016
Manufacturer
RF Micro Devices
File Size
726.61 KB
Datasheet
RFDA0016-RFMicroDevices.pdf
Description
DIGITAL CONTROLLED VARIABLE GAIN AMPLIFIER
