SGB-6433 - DC to 3.5GHz ACTIVE BIAS GAIN BLOCK

Datasheet Summary

Description

RFMD’s SGB-6433 is a high performance SiGe HBT MMIC amplifier utilizing a Darlington configuration with an active bias network.

The active bias network provides stable current over temperature and process Beta variations.

Features

  • a Class 1C ESD rating, low thermal resistance , and unconditional stability. The SGB-6433 product is designed for high linearity 5V gain block.

📥 Download Datasheet

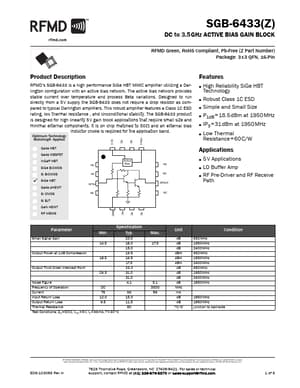

Datasheet preview – SGB-6433
