DR4103

303.825 MHz Transmitter Module

DR4103 General Description

The TX IN pin is connected to the transmitter TXMOD pin through a 4.7 K resistor on the circuit board. Additional series resistance will often be required between the modulation source and the TX IN pin, depending on the desired output power and peak modulation voltage (3.3 K typical for a peak mod.

DR4103 Datasheet (111.36 KB)

Preview of DR4103 PDF

Datasheet Details

Part number:

DR4103

Manufacturer:

RF Monolithics Inc

File Size:

111.36 KB

Description:

303.825 mhz transmitter module.
Preliminary DR4103

*

*

*

* Designed for Short-Range Wireless Data Communications Supports up to 115.2 kbps Encoded Dat.

📁 Related Datasheet

DR4100 - 433.92 MHz Transmitter Module (RF Monolithics)
Preliminary DR4100 • • • • Designed for Short-Range Wireless Data Communications Supports up to 115.2 kbps Encoded Data Transmissions 3 V, Low Current.

DR4101 - Transmitter Module (RF Monolithics)
Preliminary DR4101 • • • • Designed for Short-Range Wireless Data Communications Supports up to 115.2 kbps Encoded Data Transmissions 3 V, Low Current.

DR40 - Dielectric Coaxial Resonators (Token)
 Product Introduction Token coaxial resonators (DR) are the cornerstone of RF microwave munications. Features :  High quality factor.  High di.

DR4000 - Transmitter Module (muRata)
• Designed for Short-Range Wireless Data Communications • Supports up to 115.2 kbps Encoded Data Transmissions • 3 V, Low Current Operation plus Sleep.

DR4200 - Circular Chart Recorder (Honeywell)
.. .. .. .. .. .. .. .

DR-11525 - 16-BIT HIGH FREQUENCY HYBRID DIGITAL-TO-RESOLVER D/R CONVERTER (DDC)
DR-11525 16-BIT HIGH FREQUENCY HYBRID DIGITAL-TO-RESOLVER D/R CONVERTER DESCRIPTION The DR-11525 is a versatile multiplying digital-to-resolver con.

DR-135 - Service Manual (ALINCO)
DR-135 / DR-235 / DR-435 Service Manual CONTENTS SPECIFICATIONS GENERAL .

DR-235 - Service Manual (ALINCO)
DR-135 / DR-235 / DR-435 Service Manual CONTENTS SPECIFICATIONS GENERAL .

TAGS

DR4103 303.825 MHz Transmitter Module RF Monolithics Inc

Image Gallery

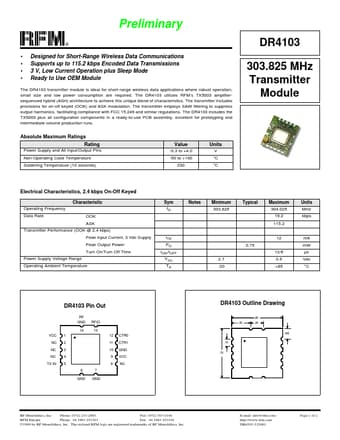

DR4103 Datasheet Preview Page 2
