DR4101

Transmitter Module

DR4101 General Description

The TX IN pin is connected to the transmitter TXMOD pin through a 4.7 K resistor on the circuit board. Additional series resistance will often be required between the modulation source and the TX IN pin, depending on the desired output power and peak modulation voltage (3.3 K typical for a peak mod.

DR4101 Datasheet (115.16 KB)

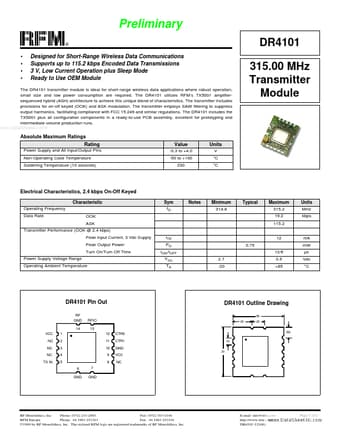

Preview of DR4101 PDF

Datasheet Details

Part number:

DR4101

Manufacturer:

RF Monolithics

File Size:

115.16 KB

Description:

Transmitter module.
Preliminary DR4101

*

*

*

* Designed for Short-Range Wireless Data Communications Supports up to 115.2 kbps Encoded Dat.
