DR4100

433.92 MHz Transmitter Module

DR4100 General Description

The TX IN pin is connected to the transmitter TXMOD pin through a 4.7 K resistor on the circuit board. Additional series resistance will often be required between the modulation source and the TX IN pin, depending on the desired output power and peak modulation voltage (3.3 K typical for a peak mod.

DR4100 Datasheet (115.40 KB)

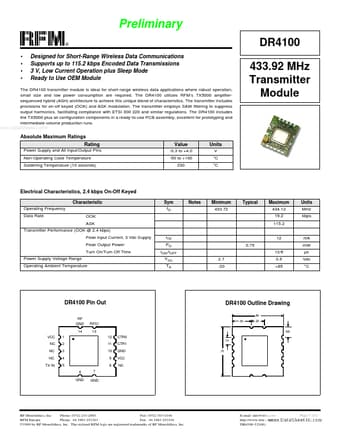

Preview of DR4100 PDF

Datasheet Details

Part number:

DR4100

Manufacturer:

RF Monolithics

File Size:

115.40 KB

Description:

433.92 mhz transmitter module.
Preliminary DR4100

*

*

*

* Designed for Short-Range Wireless Data Communications Supports up to 115.2 kbps Encoded Dat.
