20SQ045 - Schottky Diodes

20SQ045 Description

Schottky Diodes 20SQ045 R-6 MAXIMUM RATINGS (Ta=25 .

20SQ045 Applications

* Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection MECHANICAL DATA Package: R-6 Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B102 Polarity: Color

📥 Download Datasheet

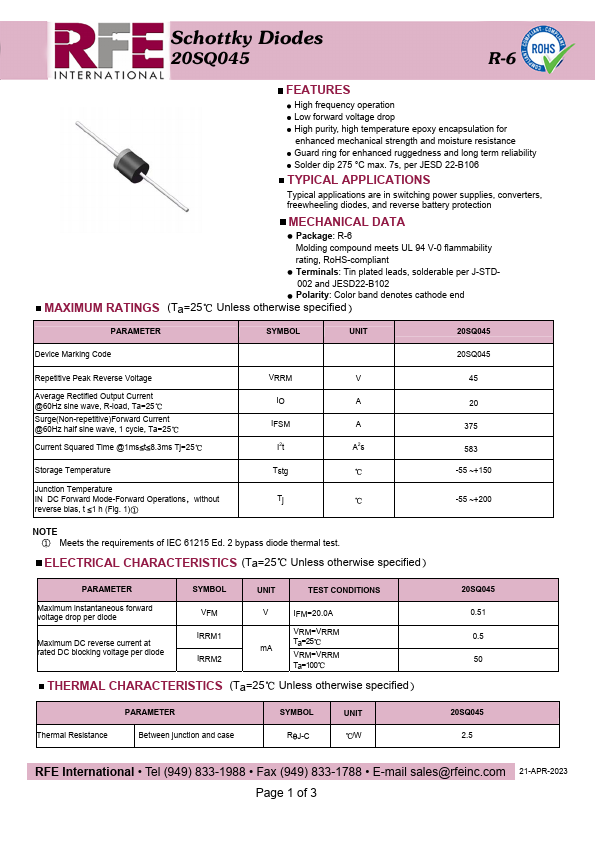

Preview of 20SQ045 PDF

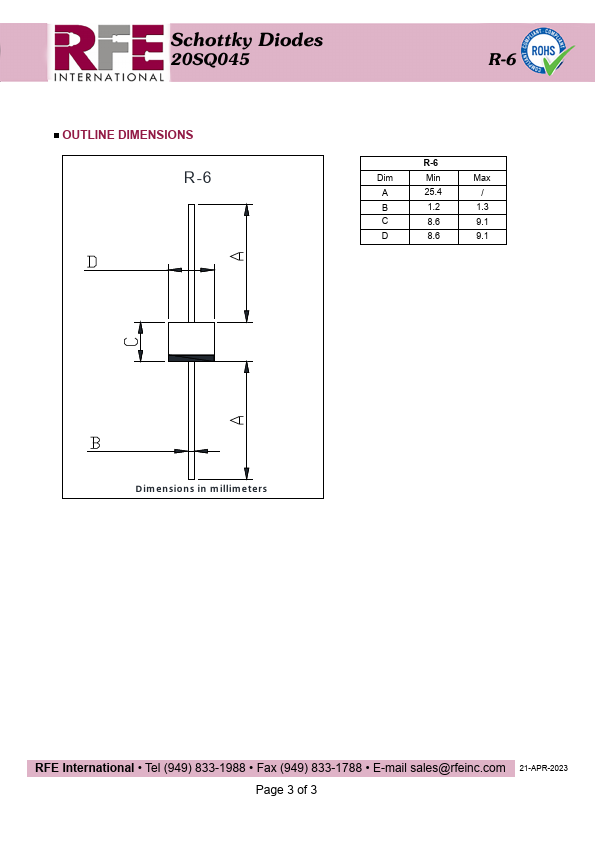

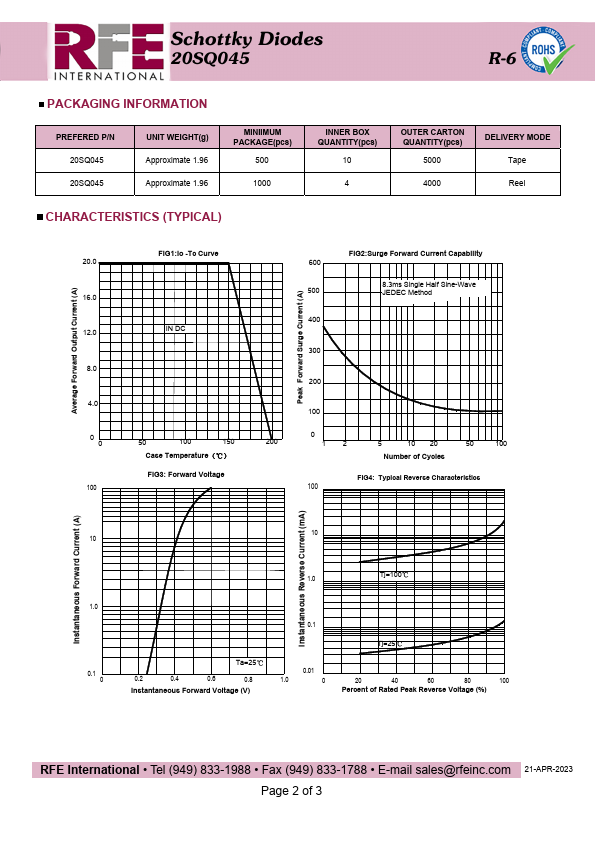

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
20SQ045
Manufacturer
RFE
File Size
400.35 KB
Datasheet
20SQ045-RFE.pdf
Description
Schottky Diodes
