HT1818-15A

GaN Hybrid Power Amplifier

HT1818-15A Features

* GaN on SiC HEMT

* 2-Stage Amplifier 50ohms Matching

* Surface Mount Hybrid Type

* Small Size & Mass

* High Efficiency Applications

* RF Sub-Systems

* Base Station

* Repeater

* 4G/LTE system

* Small cell Package Type

HT1818-15A General Description

The HT1818-15A is designed for LTE Repeater & RF Sub-systems application frequencies from 1805 ~ 1880MHz This amplifier uses GaN HEMT technology which performs high breakdown voltage, high efficiency. High In/Output impedance, High power density. Electrical Specifications @ Vds =28V, Ta=25℃ PARAME.

HT1818-15A Datasheet (245.79 KB)

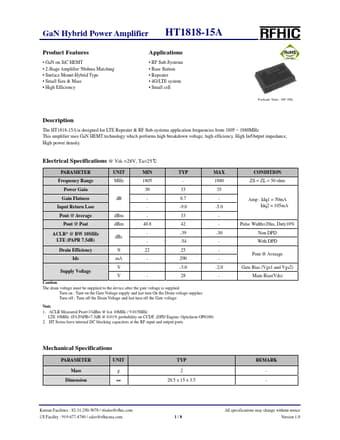

Preview of HT1818-15A PDF

Datasheet Details

Part number:

HT1818-15A

Manufacturer:

RFHIC

File Size:

245.79 KB

Description:

Gan hybrid power amplifier.
