HT1818-15M GaN Hybrid Power Amplifier

The HT1818-15M is designed for LTE Repeater & RF Sub-systems application frequencies from 1805 to 1880MHz This amplifier uses GaN HEMT technology which performs high breakdown voltage, high efficiency. High In/Output impedance, High power density. Electrical Specifications @ Vds1 =5V, Vds2 =28V, Ta.

HT1818-15M Features

* E-pHEMT GaAs + GaN on SiC

* 2-Stage Amplifier 50ohms Matching

* Surface Mount Hybrid Type

* Small Size & Mass

* High Efficiency Applications

* RF Sub-Systems

* Base Station

* Repeater

* 4G/LTE system

* Small cell Pac

HT1818-15M-RFHIC.pdf

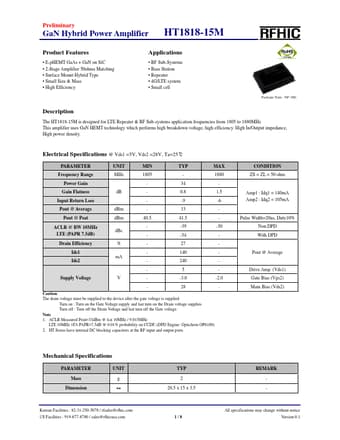

HT1818-15M Datasheet Preview — Preview of HT1818-15M PDF

Datasheet Details

Part number:

HT1818-15M

Manufacturer:

RFHIC

File Size:

232.61 KB

Description:

Gan hybrid power amplifier.
