RS5C314 ULTRA-COMPACT REAL-TIME CLOCK IC

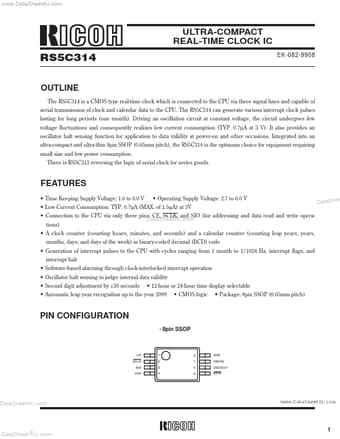

www.DataSheet4U.com ULTRA-COMPACT REAL-TIME CLOCK IC RS5C314 OUTLINE EK-082-9908 The RS5C314 is a CMOS type real-time clock which is connected to the CPU via three signal lines and capable of serial transmission of clock and calendar data to the CPU. The RS5C314 can generate various interrupt clock pulses lasting for long periods (one month). Driving an oscillation circuit at constant voltage, the circuit undergoes few voltage fluctuations and consequently realizes low current consumption (T.

RS5C314 Features

* Time Keeping Supply Voltage: 1.6 to 6.0 V

* Operating Supply Voltage: 2.7 to 6.0 V

* Low Current Consumption: TYP. 0.7µA (MAX. of 1.5µA) at 3V

* Connection to the CPU via only three pins: CE, SCLK, and SIO (for addressing and data read and write operaDataSheet4U.com

RS5C314_RICOHelectronicsdevicesdivision.pdf

RS5C314 Datasheet Preview — Preview of RS5C314 PDF

Datasheet Details

Part number:

RS5C314

Manufacturer:

RICOH electronics devices division

File Size:

212.54 KB

Description:

Ultra-compact real-time clock ic.
