RP115L081D

Low On Resistance / Low Voltage 1ch 500mA/ 1.0A Alternative LDO

RP115L081D Features

* Supply Current

* TYP. 110μA

* Supply Current (Standby Mode)

RP115L081D General Description

RP115L: DFN1216-8
*3 Pin No Symbol Pin Description 1 VOUT
*4 Output Pin 2 VOUT
*4 Output Pin 3 LCON Output Current Limit Alternate Pin (“H”=1A, “L”=500mA) 4 VFB
*4 Feedback Pin 5 GND Ground Pin 6 CE Chip Enable Pin 7 VDD
*5 Input Pin 8 VDD
*5 Input Pin

RP115L081D Datasheet (2.92 MB)

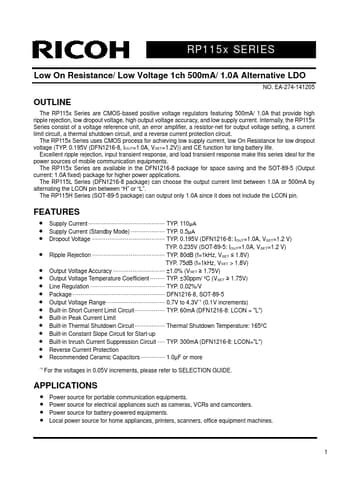

Preview of RP115L081D PDF

Datasheet Details

Part number:

RP115L081D

Manufacturer:

RICOH electronics

File Size:

2.92 MB

Description:

Low on resistance / low voltage 1ch 500ma/ 1.0a alternative ldo.
RP115x SERIES Low On Resistance/ Low Voltage 1ch 500mA/ 1.0A Alternative LDO NO. EA-274-141205 OUTLINE The RP115x Series are CMOS-based positive volta.
