RP115L281B5 Low On Resistance / Low Voltage 1ch 500mA/ 1.0A Alternative LDO

RP115L: DFN1216-8 *3 Pin No Symbol Pin Description 1 VOUT *4 Output Pin 2 VOUT *4 Output Pin 3 LCON Output Current Limit Alternate Pin (“H”=1A, “L”=500mA) 4 VFB *4 Feedback Pin 5 GND Ground Pin 6 CE Chip Enable Pin 7 VDD *5 Input Pin 8 VDD *5 Input Pin

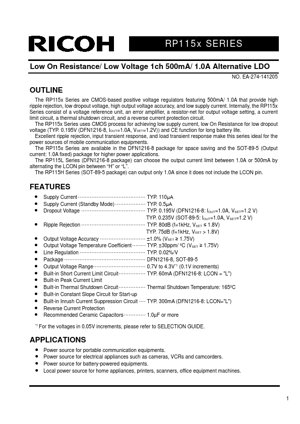

RP115x SERIES Low On Resistance/ Low Voltage 1ch 500mA/ 1.0A Alternative LDO NO. EA-274-141205 OUTLINE The RP115x Series are CMOS-based positive voltage regulators featuring 500mA/ 1.0A that provide high ripple rejection, low dropout voltage, high output voltage accuracy, and low supply current. Internally, the RP115x Series consist of a voltage reference unit, an error amplifier, a resistor-net for output voltage setting, a current limit circuit, a thermal shutdown circuit, and a reverse curren.

RP115L281B5 Features

* Supply Current

* TYP. 110μA

* Supply Current (Standby Mode)

RP115x-RICOHelectronics.pdf

RP115L281B5 Datasheet Preview — This datasheet PDF includes multiple part numbers: RP115L281B5, RP115x. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RP115L281B5, RP115x

Manufacturer:

RICOH electronics

File Size:

2.92 MB

Description:

Low on resistance / low voltage 1ch 500ma/ 1.0a alternative ldo.

Note:

This datasheet PDF includes multiple part numbers: RP115L281B5, RP115x.
Please refer to the document for exact specifications by model.
