RP115L301B, RP115x - Low On Resistance / Low Voltage 1ch 500mA/ 1.0A Alternative LDO

The RP115L301B by RICOH electronics is a Low On Resistance / Low Voltage 1ch 500mA/ 1.0A Alternative LDO. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the RP115L301B Low On Resistance / Low Voltage 1ch 500mA/ 1.0A Alternative LDO datasheet (RICOH electronics).

Datasheet Details

Part number RP115L301B, RP115x
Manufacturer RICOH electronics
File Size 2.92 MB
Description Low On Resistance / Low Voltage 1ch 500mA/ 1.0A Alternative LDO
Datasheet download datasheet RP115x-RICOHelectronics.pdf
Note This datasheet PDF includes multiple part numbers: RP115L301B, RP115x.
Please refer to the document for exact specifications by model.

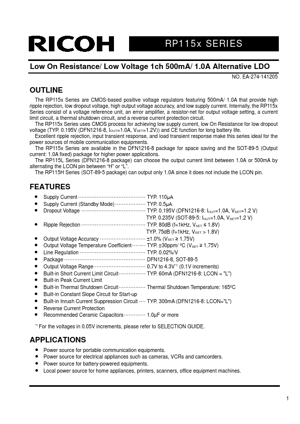

Additional preview pages of the RP115L301B datasheet.

RP115L301B Product details

Description

RP115L: DFN1216-8 3 Pin No Symbol Pin Description 1 VOUT 4 Output Pin 2 VOUT 4 Output Pin 3 LCON Output Current Limit Alternate Pin (“H”=1A, “L”=500mA) 4 VFB 4 Feedback Pin 5 GND Ground Pin 6 CE Chip Enable Pin 7 VDD 5 Input Pin 8 VDD 5 Input Pin 3 The exposed tab on the bottom of the package enhances thermal performance and is electrically connected to GND (substrate level).It is recommended that the exposed tab be connected to the ground
