R1163K161E Datasheet - RICOH

R1163K161E 3-MODE 150mA LDO REGULATOR

Input Pin Ground Pin Chip Enable Pin MODE alternative pin Output pin * PLP1616-6 Pin No 1 2 Symbol VOUT GND Pin Description Output pin Ground Pin 3 ECO MODE alternative pin 4 CE Chip Enable pin 5 NC No Connection 6 VDD Input Pin * Tab in the parts have GND level. (They ar.

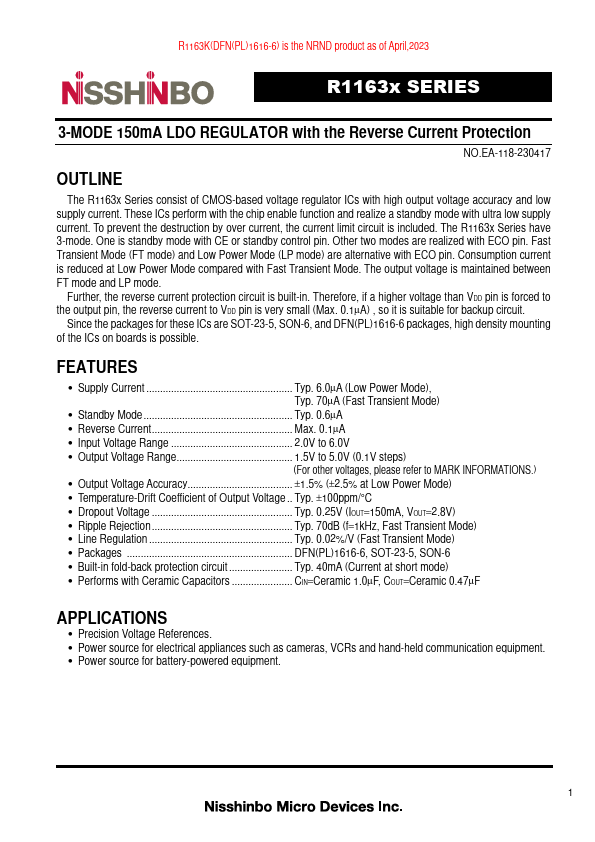

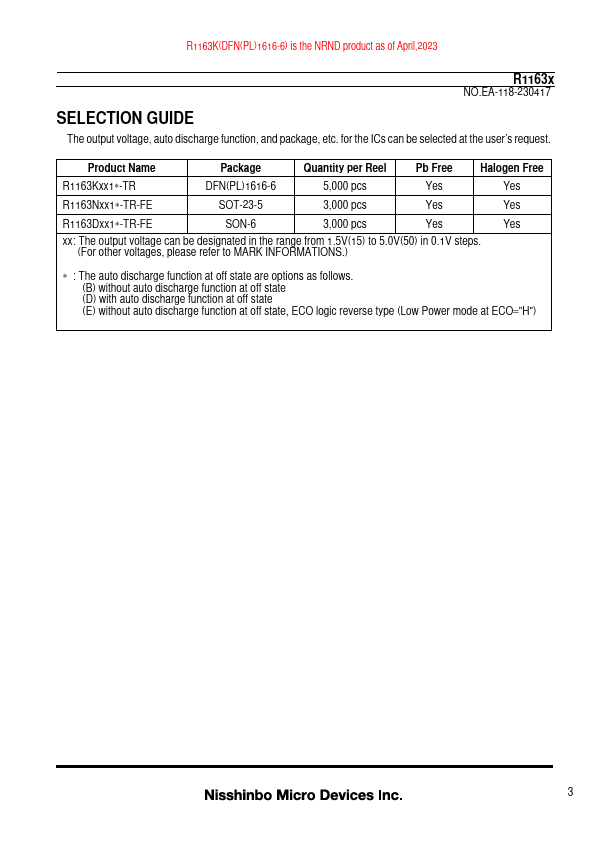

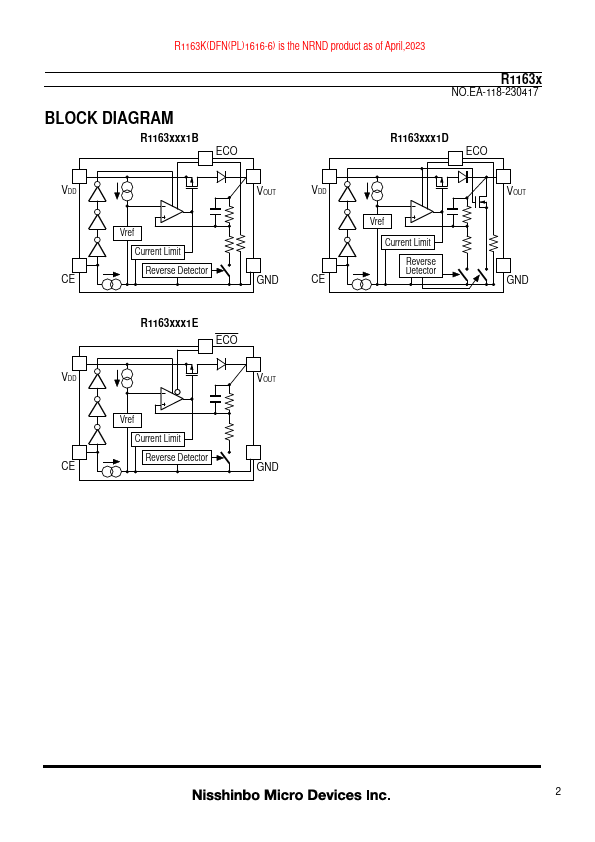

R1163x SERIES 3-MODE 150mA LDO REGULATOR with the Reverse Current Protection NO.EA-118-0605 OUTLINE The R1163x Series consist of CMOS-based voltage regulator ICs with high output voltage accuracy and low supply current. These ICs perform with the chip enable function and realize a standby mode with ultra low supply www.DataSheetc4uUr.creomnt. To prevent the destruction by over current, the current limit circuit is included. The R1163x Series have 3-mode. One is standby mode with CE or standby co.

R1163K161E Features

* Ultra-Low Supply CurrentTyp. 6.0µA (Low Power Mode), Typ. 70µA (Fast Transient Mode)

* Standby Mode Typ. 0.6µA

* Reverse CurrentMax. 0.1µA

* Low Dropout VoltageTyp. 0.25V (IOUT=150mA Output Voltage=3.0V Type)

* High Ripple Rejection Typ. 70dB (f=1kHz, FT Mod

R1163K161E Datasheet (1.14 MB)

R1163K161E Datasheet Preview — Preview of R1163K161E PDF

Datasheet Details

Part number:

R1163K161E

Manufacturer:

RICOH

File Size:

1.14 MB

Description:

3-mode 150ma ldo regulator.
