Part number:
2SCR543R
Manufacturer:
File Size:
1.77 MB
Description:
Npn transistor.

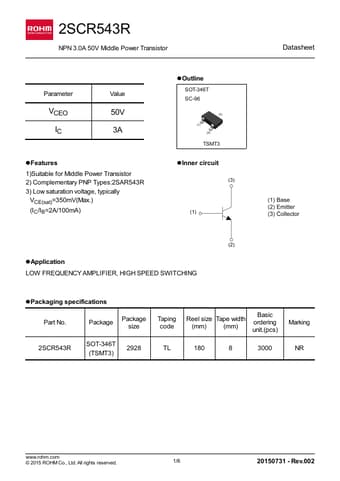

* 1)Suitable for Middle Power Transistor 2) Complementary PNP Types:2SAR543R 3) Low saturation voltage, typically VCE(sat)=350mV(Max.) (IC/IB=2A/100mA) lOutline SOT-346T SC-96 TSMT3 lInner circuit Datasheet lApplication LOW FREQUENCY AMPLIFIER, HIGH SPEED SWITCHING lPackaging spec
2SCR543R
1.77 MB
Npn transistor.
