BD18345EFV-M - Constant Current Controller

BD18345EFV-M Description

Datasheet Constant Current LED Drivers Constant Current Controller for Automotive LED Lamps BD18345EFV-M General .
BD18345EFV-M is 70 V-withstanding constant current controller for automotive LED lamps.

BD18345EFV-M Features

* AEC-Q100 Qualified(Note 1)
* PWM Dimming Function
* PWM Signal Output
* LED Current DC Dimming
* Thermal De-rating Function
* LED Open Detection
* Short Circuit Protection (SCP)
* Over Voltage Mute Function (OVM)
* Disable LED Open Detection Function at Reduced-

BD18345EFV-M Applications

* Automotive LED Exterior Lamp (Rear Lamp, Turn Lamp, DRL/Position Lamp, Fog Lamp etc. )
* Automotive LED Interior Lamp (Air Conditioner Lamp, Interior Lamp, Cluster Light etc. ) Typical Application Circuit PWM_in D1 ZD1 D2 CVIN1 CVIN2 DC_in D3 CCRT RCRT RDCIN CD VIN EN FB BASE RFB

📥 Download Datasheet

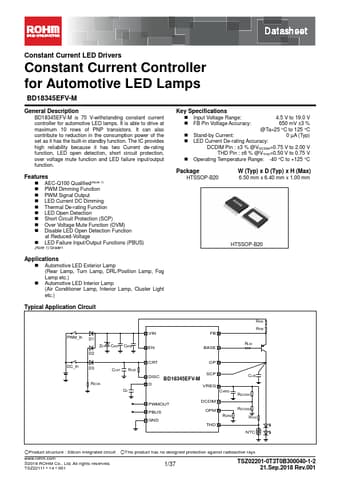

Preview of BD18345EFV-M PDF
