BD18353EFV-M, 1ch High Current LED Controller

Datasheet Boost LED Driver 1ch High Current LED Controller for Automotive BD18353EFV-M BD18353MUF-M General .
BD18353EFV-M/MUF-M is a 1ch LED Controller.

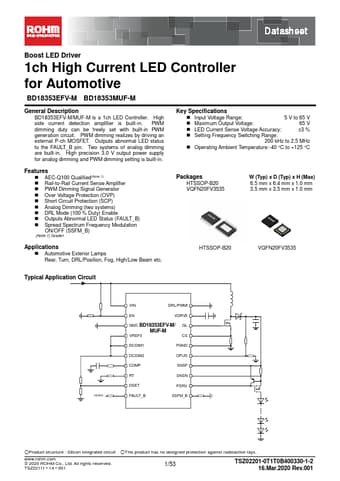

datasheet Preview Page 1 from Datasheet4u.com

BD18353EFV-M-ROHM.pdf

BD18353EFV-M Datasheet Preview — Preview of BD18353EFV-M PDF

Datasheet Details

Part number:

BD18353EFV-M

Manufacturer:

ROHM ↗

File Size:

4.00 MB

Description:

1ch High Current LED Controller

Features

* AEC-Q100 Qualified(Note 1)
* Rail-to-Rail Current Sense Amplifier
* PWM Dimming Signal Generator
* Over Voltage Protection (OVP)
* Short Circuit Protection (SCP)
* Analog Dimming (two systems)
* DRL Mode (100 % Duty) Enable
* Outputs Abnormal LED Status (FAULT_B)

Applications

* Automotive Exterior Lamps Rear, Turn, DRL/Position, Fog, High/Low Beam etc. HTSSOP-B20 VQFN20FV3535 Typical Application Circuit VD RV5 VIN DRL/PWMI EN VDRV5 GND BD18353EFV-M/ GL MUF-M VREF3 CS DCDIM1 PGND DCDIM2 OPUD COMP SNSP RT SNSN DSET PDRV FAULT_B SSFM_B Product stru
