BD69730FV, Multifunction Single-phase Full-wave Fan Motor Driver

Datasheet DC Brushless Motor Drivers for Fans Multifunction Single-phase Full-wave Fan Motor Driver BD69730FV .
BD69730FV is a pre-driver that controls the motor drive part composed of the power transistors.

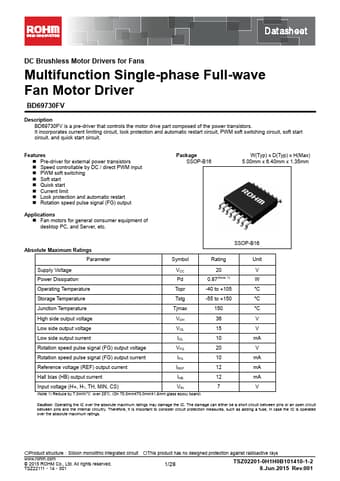

datasheet Preview Page 1 from Datasheet4u.com

BD69730FV-ROHM.pdf

BD69730FV Datasheet Preview — Preview of BD69730FV PDF

Datasheet Details

Part number:

BD69730FV

Manufacturer:

ROHM ↗

File Size:

1.06 MB

Description:

Multifunction Single-phase Full-wave Fan Motor Driver

Features

* Pre-driver for external power transistors
* Speed controllable by DC / direct PWM input
* PWM soft switching
* Soft start
* Quick start
* Current limit
* Lock protection and automatic restart
* Rotation speed pulse signal (FG) output

Applications

* Fan motors for general consumer equipment of desktop PC, and Server, etc. Package SSOP-B16 W(Typ) x D(Typ) x H(Max) 5.00mm x 6.40mm x 1.35mm Absolute Maximum Ratings Parameter Symbol SSOP-B16 Rating Unit Supply Voltage Power Dissipation VCC Pd 20 0.87(Note 1) Operating Temperatu
