BD6971FV - Multifunction Single-phase Full-wave Fan Motor Driver

Rohm

📥 Download Datasheet

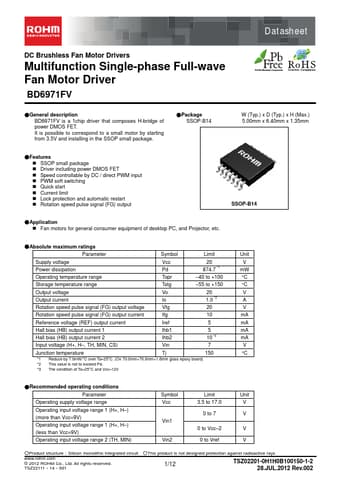

BD6971FV Datasheet Preview — Preview of BD6971FV PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: BD6971FV
Manufacturer: ROHM ↗
File Size: 509.36 KB
Datasheet: BD6971FV_Rohm.pdf
Description: Multifunction Single-phase Full-wave Fan Motor Driver

BD6971FV Product details

Description

BD6971FV is a 1chip driver that composes H-bridge of power DMOS FET. Package SSOP-B14 W (Typ.) x D (Typ.) x H (Max.) 5.00mm x 6.40mm x 1.35mm

Features

SSOP small package.
Driver including power DMOS FET.
Speed controllable by DC / direct PWM input.
PWM soft switching.
Quick start.
Current limit.
Lock protection and automatic restart.
Rotation speed pulse signal (FG) output SSOP-B14.
Application.
Fan motors for general consumer equipment of desktop PC, and Projector, etc.
Absolute maximum ratings Parameter Symbol Limit Supply voltage Power dissipa.
