BD6971FS - Multifunction Single-phase Full-wave Fan Motor Driver

Rohm

📥 Download Datasheet

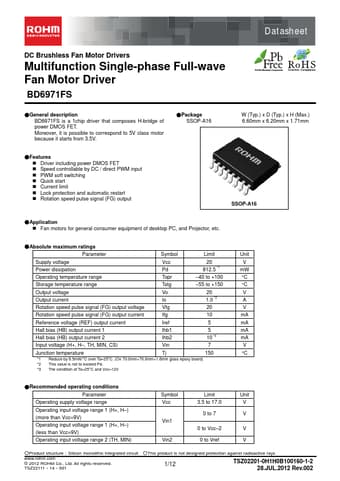

BD6971FS Datasheet Preview — Preview of BD6971FS PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: BD6971FS
Manufacturer: ROHM ↗
File Size: 512.88 KB
Datasheet: BD6971FS_Rohm.pdf
Description: Multifunction Single-phase Full-wave Fan Motor Driver

BD6971FS Product details

Description

BD6971FS is a 1chip driver that composes H-bridge of power DMOS FET. Package SSOP-A16 W (Typ.) x D (Typ.) x H (Max.) 6.60mm x 6.20mm x 1.71mm

Features

Driver including power DMOS FET.
Speed controllable by DC / direct PWM input.
PWM soft switching.
Quick start.
Current limit.
Lock protection and automatic restart.
Rotation speed pulse signal (FG) output SSOP-A16.
Application.
Fan motors for general consumer equipment of desktop PC, and Projector, etc.
Absolute maximum ratings Parameter Symbol Limit Supply voltage Power dissipation Vcc 20 Pd 812.5.
1.
