BD78306EFJ-M - Monaural Speaker Amplifier

BD78306EFJ-M Description

Datasheet Class-AB Speaker Amplifier Series 1.2 W Monaural Speaker Amplifier for Automotive BD783xxEFJ-M Series (Including products under developmen.
BD783xxEFJ-M Series are Class-AB monaural speaker amplifiers designed for automotive.

BD78306EFJ-M Features

* AEC-Q100 Qualified(Note 1)
* Pop Noise Reduction Function
* Shutdown Function
* Protection Functions - Over Current Protection - Thermal Shutdown - Under Voltage Lock Out (UVLO)

📥 Download Datasheet

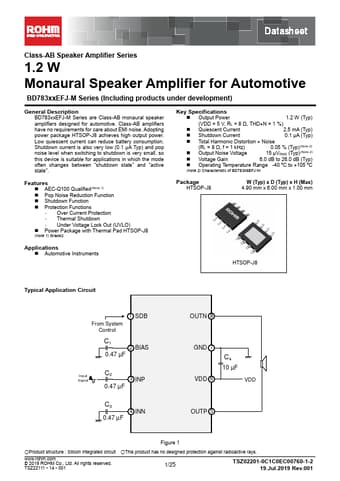

Preview of BD78306EFJ-M PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BD78306EFJ-M
Manufacturer
ROHM ↗
File Size
1.60 MB
Datasheet
BD78306EFJ-M-ROHM.pdf
Description
Monaural Speaker Amplifier
