BD78316EFJ-M

Monaural Speaker Amplifier

BD78316EFJ-M Features

* AEC-Q100 Qualified(Note 1)

* Pop Noise Reduction Function

* Shutdown Function

* Protection Functions - Over Current Protection - Thermal Shutdown - Under Voltage Lock Out (UVLO)

* Power Package with Thermal Pad HTSOP-J8 (Note 1) Grade2 Applications

* Automotive Instruments

BD78316EFJ-M General Description

BD783xxEFJ-M Series are Class-AB monaural speaker amplifiers designed for automotive. Class-AB amplifiers have no requirements for care about EMI noise. Adopting power package HTSOP-J8 achieves high output power. Low quiescent current can reduce battery consumption. Shutdown current is also very low.

BD78316EFJ-M Datasheet (1.60 MB)

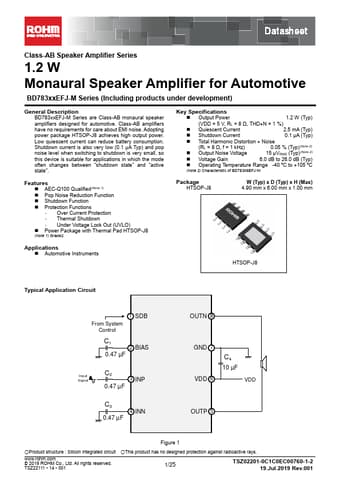

Preview of BD78316EFJ-M PDF

Datasheet Details

Part number:

BD78316EFJ-M

Manufacturer:

ROHM ↗

File Size:

1.60 MB

Description:

Monaural speaker amplifier.
Datasheet Class-AB Speaker Amplifier Series 1.2 W Monaural Speaker Amplifier for Automotive BD783xxEFJ-M Series (Including products under developmen.
