BD8306MUV - Integrated 2.0A MOSFET 1ch Buck-Boost Converter

ROHM

📥 Download Datasheet

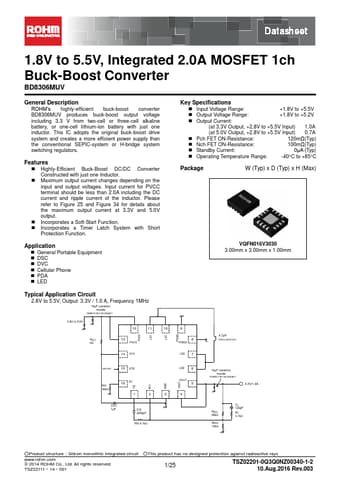

BD8306MUV Datasheet Preview — Preview of BD8306MUV PDF

Datasheet Details

Part number: BD8306MUV
Manufacturer: ROHM ↗
File Size: 1.40 MB
Datasheet: BD8306MUV-ROHM.pdf
Description: Integrated 2.0A MOSFET 1ch Buck-Boost Converter

BD8306MUV Product details

Description

ROHM’s highly-efficient buck-boost converter BD8306MUV produces buck-boost output voltage including 3.3 V from two-cell or three-cell alkaline battery, or one-cell lithium-ion battery with just one inductor..

Features

Highly-Efficient Buck-Boost DC/DC Converter Constructed with just one Inductor.
Maximum output current changes depending on the input and output voltages. Input current for PVCC terminal should be less than 2.0A including the DC current and ripple current of the inductor. Please refer to Figure 25 and Figure 34 for details about the maximum output current at 3.3V and 5.0V output.
Incorporates a Soft-Start Function.
Incorporates a Timer Latch System with Short Protection F.
