BD8301MUV - High-effciency Step-up/down Switching Regulator

Rohm

📥 Download Datasheet

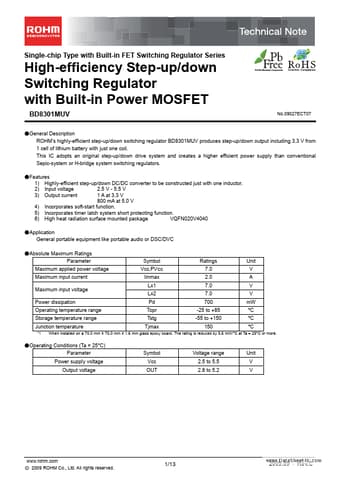

BD8301MUV Datasheet Preview — Preview of BD8301MUV PDF

Datasheet Details

Part number: BD8301MUV
Manufacturer: ROHM ↗
File Size: 417.25 KB
Datasheet: BD8301MUV_Rohm.pdf
Description: High-effciency Step-up/down Switching Regulator

BD8301MUV Product details

Description

ROHM’s highly-efficient step-up/down switching regulator BD8301MUV produces step-up/down output including 3.3 V from 1 cell of lithium battery with just one coil..

Features

1) Highly-efficient step-up/down DC/DC converter to be constructed just with one inductor. 2) Input voltage 2.5 V - 5.5 V 3) Output current 1 A at 3.3 V 800 mA at 5.0 V 4) Incorporates soft-start function. 5) Incorporates timer latch system short protecting function. 6) High heat radiation surface mounted package VQFN020V4040.
Application General portable equipment like portable audio or DSC/DVC.
Absolute Maximum Ratings Parameter Maximum applied power voltage Maximum input current Maxim.
