BD8379EFV-M - 12ch LED Driver

Datasheet Summary

Description

The BD8379EFV-M is a serial-in parallel-out controlled LED driver with 35V output voltage rating.

With the input of 3-line serial data, it turns the 12ch open drain output on/off.

Due to its compact size, it is optimal for small space.

Features

  • Open Drain Output.
  • 3-line Serial Control + Enable Signal.
  • Cascade Connection Compatible.
  • HTSSOP-B20 Package.
  • Internal 12ch Power Transistor.
  • Output Slew Rate Typical 20V/μs (for Low EMC Noise).
  • AEC-Q100 Qualified. (Note 1) (Note 1) Grade2 Key Specifications.
  • Input voltage range:.
  • Output voltage range:.
  • DC Output Current (per CH):.
  • Output ON Resistance:.
  • Standby current:.
  • Operating temperature range: 3.0V to 5.5V 35V (Max. ) 50mA(.

📥 Download Datasheet

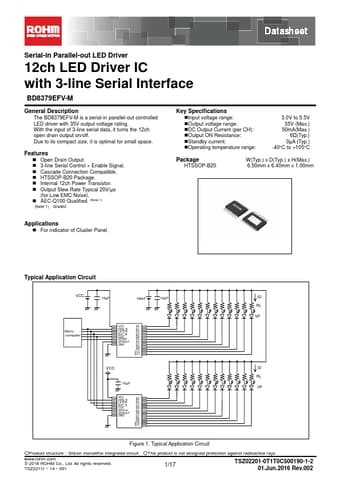

Datasheet preview – BD8379EFV-M
