BD8379FV-M - 12ch LED Driver

ROHM

📥 Download Datasheet

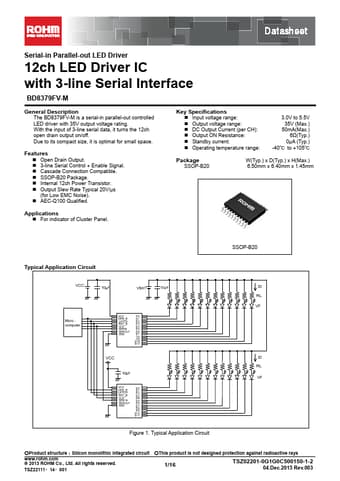

BD8379FV-M Datasheet Preview — Preview of BD8379FV-M PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: BD8379FV-M
Manufacturer: ROHM ↗
File Size: 898.59 KB
Datasheet: BD8379FV-M-ROHM.pdf
Description: 12ch LED Driver

BD8379FV-M Product details

Description

The BD8379FV-M is a serial-in parallel-out controlled LED driver with 35V output voltage rating.

Features

Open Drain Output.
3-line Serial Control + Enable Signal.
Cascade Connection Compatible.
SSOP-B20 Package.
Internal 12ch Power Transistor.
Output Slew Rate Typical 20V/μs (for Low EMC Noise).
AEC-Q100 Qualified. Key Specifications.
Input voltage range:.
Output voltage range:.
DC Output Current (per CH):.
Output ON Resistance:.
Standby current:.
Operating temperature range: 3.0V to 5.5V 35V (Max. ) 50mA(Max. ) 6Ω(Typ. ) 0μA (T.
