BH6260MWX Datasheet - ROHM

BH6260MWX USB Switch

BH6260MWX is SPST x 2ch and Inverter x 2ch analog switches. Analog SW0 and SW1 pass USB 2.0 high-speed signal. Analog SW2 and SW3 pass UART signal. Moreover, this is guaranteed from 2.9V to 3.7V as for the range of the power-supply voltage. Enable signals ENB0, ENB1, EN2, and EN3 can control Analog .

BH6260MWX Features

* 1) 5Ω switches connect inputs to outputs 2) Low Capacity Analog SW 2ch with clamp Diode 3) 1.8V Output Inverter 2ch 4) 16-Pin SON Package (3.3mm x 1.5mm, Height=0.6mm, 0.4mm pitch) 5) It contributes to the miniaturization because all external is built into.

* Applications Digital Still Cameras,

BH6260MWX Datasheet (495.93 KB)

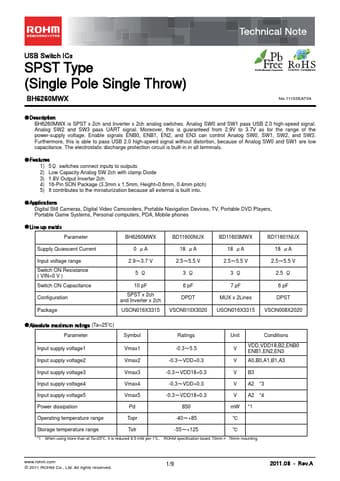

Preview of BH6260MWX PDF
BH6260MWX Datasheet Preview Page 2 BH6260MWX Datasheet Preview Page 3

Datasheet Details

Part number:

BH6260MWX

Manufacturer:

ROHM ↗

File Size:

495.93 KB

Description:

Usb switch.
