BH6039KN Datasheet - Rohm

BH6039KN, Power management

01W087A Power management IC for cellular phones BH6039KN .
BH6039KN is a compound power management IC incorporating regulator, detector, charge control circuit for charging lithium battery, and each driver for.

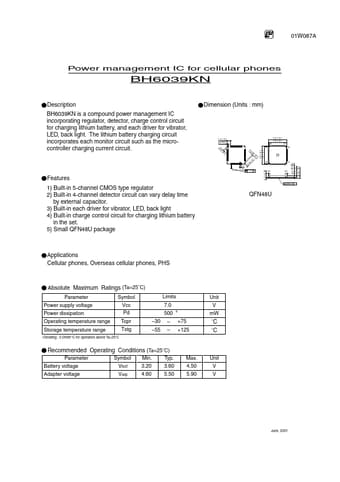

datasheet Preview Page 1 from Datasheet4u.com

BH6039KN_Rohm.pdf

BH6039KN Datasheet Preview — Preview of BH6039KN PDF

Datasheet Details

Part number:

BH6039KN

Manufacturer:

ROHM ↗

File Size:

208.91 KB

Description:

Power management

Features

* 1) Built-in 5-channel CMOS type regulator 2) Built-in 4-channel detector circuit can vary delay time by external capacitor. 3) Built-in each driver for vibrator, LED, back light 4) Built-in charge control circuit for charging lithium battery in the set. 5) Small QFN48U package 0.05 QFN48U Applica

Applications

* Cellular phones, Overseas cellular phones, PHS Absolute Maximum Ratings (Ta=25˚C) Parameter Power supply voltage Power dissipation Operating temperature range Storage temperature range ∗Derating : 5.0mW/˚C for operation above Ta=25˚C Symbol Vcc Pd Topr Tstg
* 30
* 55 Limits 7.0 500
