BSM120D12P2C005 - SiC

ROHM

BSM120D12P2C005 Description

SiC Power Module BSM120D12P2C005 *Application  Motor drive  Inverter, Converter  Photovoltaics, wind power generation. Induction heating equi.

BSM120D12P2C005 Features

* 1) Low surge, low switching loss. 2) High-speed switching possible. 3) Reduced temperature dependence.
* Circuit diagram Datasheet 1 10 9 8(N. C) 3,4 5 6 7(N. C) 2
* Do not connnect to NC pin.
* Construction This product is a half bridge module consisting of SiC-DMOS and SiC SBD from RO

📥 Download Datasheet

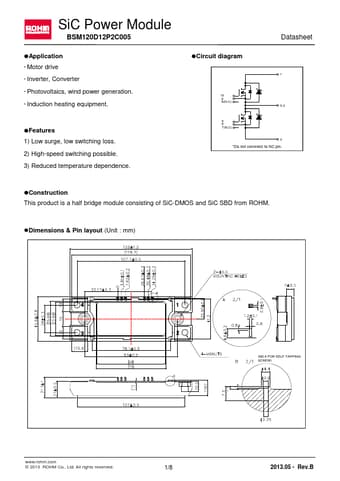

BSM120D12P2C005 Datasheet Preview — Preview of BSM120D12P2C005 PDF

Datasheet Details

Part number: BSM120D12P2C005
Manufacturer: ROHM ↗
File Size: 628.67 KB
Datasheet: BSM120D12P2C005-ROHM.pdf
Description: SiC
