BSM100GAL120DN2 IGBT

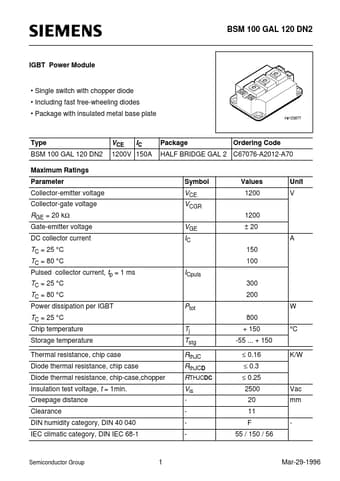

BSM 100 GAL 120 DN2 IGBT Power Module Single switch with chopper diode Including fast free-wheeling diodes Package with insulated metal base plate Type BSM 100 GAL 120 DN2 Maximum Ratings Parameter Collector-emitter voltage Collector-gate voltage VCE IC Package Ordering Code 1200V 150A HALF BRIDGE GAL 2 C67076-A2012-A70 Symbol Values 1200 1200 Unit V VCE VCGR VGE IC RGE = 20 kΩ Gate-emitter voltage DC collector current ± 20 A 150 100 TC = 25 °C TC = .

BSM100GAL120DN2_SiemensSemiconductorGroup.pdf

Preview of BSM100GAL120DN2 PDF
BSM100GAL120DN2 Datasheet Preview Page 2 BSM100GAL120DN2 Datasheet Preview Page 3

Datasheet Details

Part number:

BSM100GAL120DN2

Manufacturer:

Siemens Semiconductor Group

File Size:

81.21 KB

Description:

Igbt.
