DTA115EEB - PNP Digital Transistor

Product Overview

ROHM

📥 Download Datasheet

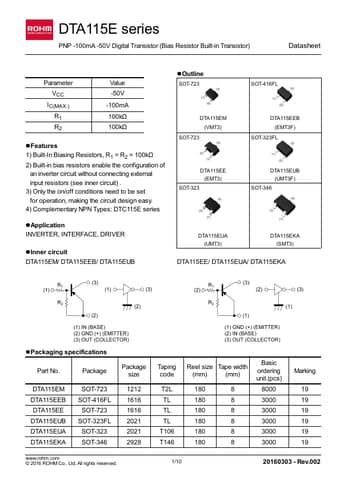

DTA115EEB PNP Digital Transistor by ROHM - Datasheet Preview — Datasheet preview – DTA115EEB

Datasheet Details

Part number	DTA115EEB
Manufacturer	ROHM
File Size	1.94 MB
Description	PNP Digital Transistor
Datasheet	DTA115EEB Datasheet
Note	This datasheet PDF includes multiple part numbers: DTA115EEB, DTA115EE. Please refer to the document for exact specifications by model.
Additional preview pages of the DTA115EEB datasheet.

Product details

Features

1) Built-In Biasing Resistors, R1 = R2 = 100kΩ 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 4) Complementary NPN Types: DTC115E series l.
