DTA115EUA, DTA115EE PNP Digital Transistor

ROHM

Description

DTA115E series PNP -100mA -50V Digital Transistor (Bias Resistor Built-in Transistor) Datasheet Parameter VCC IC(MAX.) R1 R2 Value -50V -100mA 100k.

📥 Download Datasheet

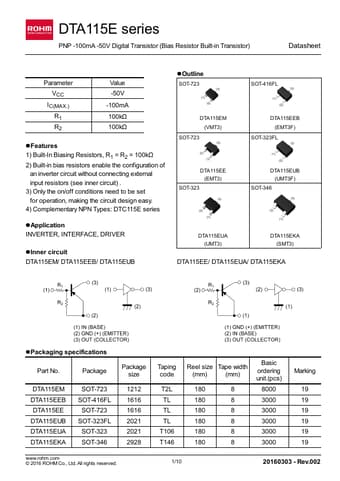

DTA115EUA Datasheet Preview — This datasheet PDF includes multiple part numbers: DTA115EUA, DTA115EE. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: DTA115EUA, DTA115EE
Manufacturer: ROHM ↗
File Size: 1.94 MB
Datasheet: DTA115EE_Rohm.pdf
Description: PNP Digital Transistor
Note: This datasheet PDF includes multiple part numbers: DTA115EUA, DTA115EE.
Please refer to the document for exact specifications by model.

Features

* 1) Built-In Biasing Resistors, R1 = R2 = 100kΩ 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 4) Complementary
