DTA115EMFHA - PNP Digital Transistor

DTA115EMFHA Description

DTA115EM FHA PNP -100mA -50V Digital Transistor (Bias Resistor Built-in Transistor) Datasheet AEC-Q101 Qualified Parameter VCC IC(MAX.) R1 R2 Val.

DTA115EMFHA Features

* 1) Built-In Biasing Resistors, R1 = R2 = 100kΩ 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 4) Complementary

📥 Download Datasheet

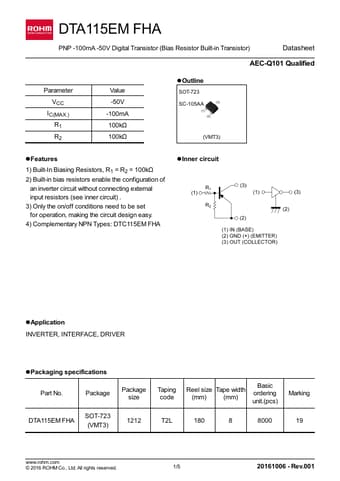

Preview of DTA115EMFHA PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DTA115EMFHA
Manufacturer
ROHM ↗
File Size
0.97 MB
Datasheet
DTA115EMFHA-ROHM.pdf
Description
PNP Digital Transistor
