DTA123TM - PNP Transistor

DTA123TM Description

DTA123T series PNP -100mA -50V Digital Transistor (Bias Resistor Built-in Transistor) Datasheet Parameter VCEO IC R Value -50V -100mA 2.2kΩ lFeatu.

DTA123TM Features

* 1) Built-In Biasing Resistor 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 4) Complementary NPN Types: DTC123T

DTA123TM Applications

* ), please consult with the ROHM sales representative in advance. Unless otherwise agreed in writing by ROHM in advance, ROHM shall not be in any way responsible or liable for any damages, expenses or losses incurred by you or third parties arising from the use of any ROHM’s Products for Specific App

📥 Download Datasheet

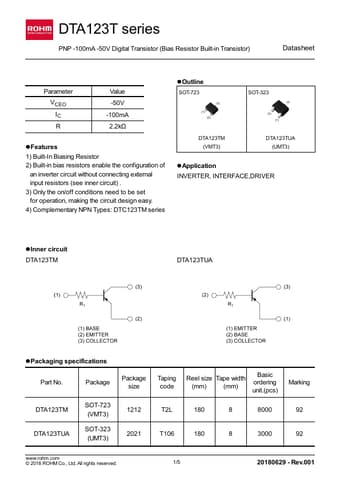

Preview of DTA123TM PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DTA123TM
Manufacturer
ROHM ↗
File Size
1.16 MB
Datasheet
DTA123TM-ROHM.pdf
Description
PNP Transistor
