DTA143EUAFRA Datasheet - ROHM

DTA143EUAFRA, PNP Digital Transistor

DTA143EUA FRA PNP -100mA -50V Digital Transistor (Bias Resistor Built-in Transistor) Datasheet AEC-Q101 Qualified Parameter VCC IC(MAX.) R1 R2 Va.

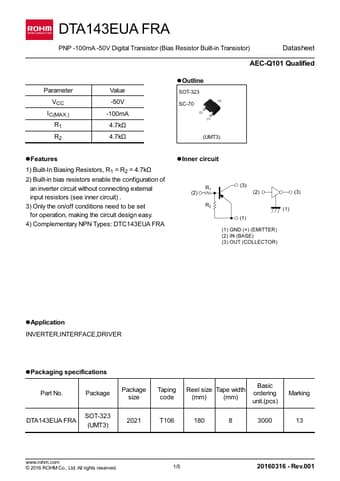

 datasheet Preview Page 1 from Datasheet4u.com

DTA143EUAFRA-ROHM.pdf

Preview of DTA143EUAFRA PDF

Datasheet Details

Part number:

DTA143EUAFRA

Manufacturer:

ROHM ↗

File Size:

785.96 KB

Description:

PNP Digital Transistor

Features

* 1) Built-In Biasing Resistors, R1 = R2 = 4.7kΩ 2) Built-in bias resistors enable the configuration of  an inverter circuit without connecting external  input resistors (see inner circuit) . 3) Only the on/off conditions need to be set  for operation, making the circuit design easy. 4) Complementary
