DTA143XCAHZG, PNP Digital Transistor

DTA143XCA HZG PNP -100mA -50V Digital Transistor (Bias Resistor Built-in Transistor) Datasheet AEC-Q101 Qualified Parameter VCC IC(MAX.) R1 R2 Va.

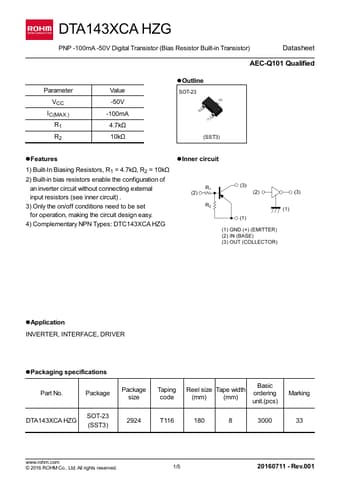

datasheet Preview Page 1 from Datasheet4u.com

DTA143XCAHZG-ROHM.pdf

DTA143XCAHZG Datasheet Preview — Preview of DTA143XCAHZG PDF

Datasheet Details

Part number:

DTA143XCAHZG

Manufacturer:

ROHM ↗

File Size:

1.06 MB

Description:

PNP Digital Transistor

Features

* 1) Built-In Biasing Resistors, R1 = 4.7kΩ, R2 = 10kΩ 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 4) Compleme
