DTC143ZEFRA Digital Transistor

DTC143ZEFRA Description

DTC143ZE FRA NPN 100mA 50V Digital Transistor (Bias Resistor Built-in Transistor) Datasheet AEC-Q101 Qualified Parameter VCC IC(MAX.) R1 R2 Value.

DTC143ZEFRA Features

* 1) Built-in bias resistors . R1 = 4.7kΩ, R2 = 47kΩ. 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 4) Complement

DTC143ZEFRA Applications

* ), please consult with the ROHM sales representative in advance. Unless otherwise agreed in writing by ROHM in advance, ROHM shall not be in any way responsible or liable for any damages, expenses or losses incurred by you or third parties arising from the use of any ROHM’s Products for Specific App

📥 Download Datasheet

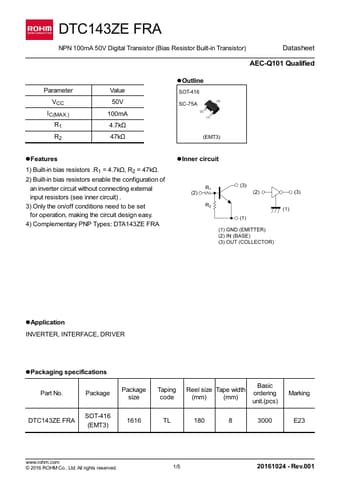

Preview of DTC143ZEFRA PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DTC143ZEFRA
Manufacturer
ROHM ↗
File Size
1.08 MB
Datasheet
DTC143ZEFRA-ROHM.pdf
Description
Digital Transistor
