DTC143ZUAFRA

Digital Transistor

DTC143ZUAFRA Features

* 1) Built-in bias resistors .R1 = 4.7kΩ, R2 = 47kΩ. 2) Built-in bias resistors enable the configuration of  an inverter circuit without connecting external  input resistors (see inner circuit) . 3) Only the on/off conditions need to be set  for operation, making the circuit design easy. 4) Complement

DTC143ZUAFRA Datasheet (1.09 MB)

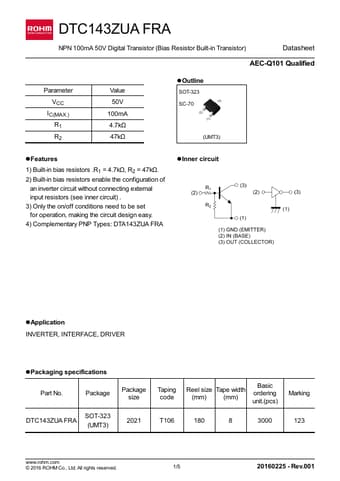

Preview of DTC143ZUAFRA PDF

Datasheet Details

Part number:

DTC143ZUAFRA

Manufacturer:

ROHM ↗

File Size:

1.09 MB

Description:

Digital transistor.
DTC143ZUA FRA NPN 100mA 50V Digital Transistor (Bias Resistor Built-in Transistor) Datasheet AEC-Q101 Qualified Parameter VCC IC(MAX.) R1 R2 Valu.
