DTC143ZUB, DTC143ZM Datasheet - Rohm

DTC143ZUB, DTC143ZM, NPN 100mA 50V Digital Transistors

DTC143Z series NPN 100mA 50V Digital Transistor (Bias Resistor Built-in Transistor) Datasheet Parameter VCC IC(MAX.) R1 R2 Value 50V 100mA 4.7kΩ 47.

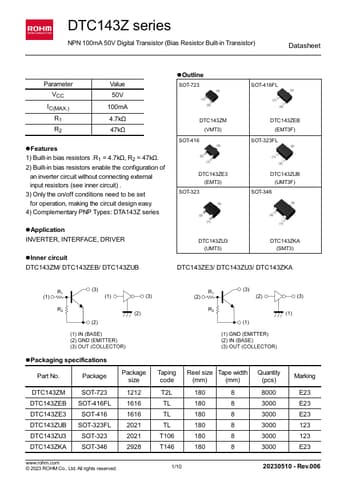

datasheet Preview Page 1 from Datasheet4u.com

DTC143ZM-Rohm.pdf

DTC143ZUB Datasheet Preview — This datasheet PDF includes multiple part numbers: DTC143ZUB, DTC143ZM. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DTC143ZUB, DTC143ZM

Manufacturer:

ROHM ↗

File Size:

3.19 MB

Description:

NPN 100mA 50V Digital Transistors

Note:

This datasheet PDF includes multiple part numbers: DTC143ZUB, DTC143ZM.
Please refer to the document for exact specifications by model.

Features

* 1) Built-in bias resistors . R1 = 4.7kΩ, R2 = 47kΩ. 2) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see inner circuit) . 3) Only the on/off conditions need to be set for operation, making the circuit design easy. 4) Complementary
