* 1)Built-in bias resistors enable the configuration of an invertercircuit without connecting external input resistors(see equivalent circuit) 2)The bias resistors consist of thin-film resistors with complete isolation to allow negative lOutline SOT-346 SC-59 (SMT3) l

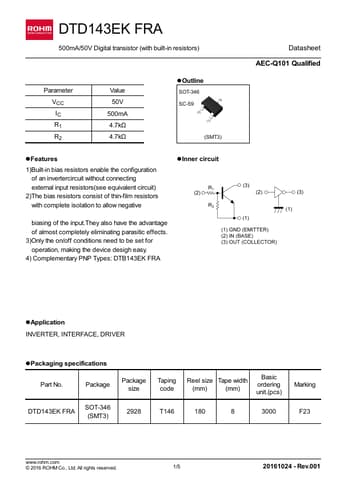

DTD143EKFRA Datasheet (1.03 MB)
DTD143EKFRA
1.03 MB
Digital transistor.
DTD143EK FRA
500mA/50V Digital transistor (with built-in resistors)
Datasheet AEC-Q101 Qualified
Parameter VCC IC R1 R2
Value 50V 500mA 4.7kΩ 4.7k.
