DTD143E - NPN DIGITAL TRANSISTOR

UTC

📥 Download Datasheet

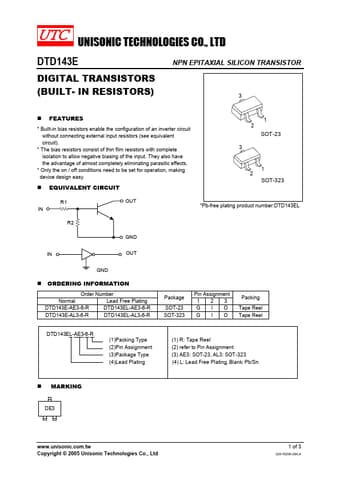

DTD143E Datasheet Preview — Preview of DTD143E PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DTD143E
Manufacturer	UTC
File Size	219.43 KB
Description	NPN DIGITAL TRANSISTOR
Datasheet	DTD143E_UTC.pdf

DTD143E Product details

Features

Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
The bias resistors consist of thin film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
Only the on / off conditions need to be set for operation, making device design easy. NPN.
