DTD143EC Digital transistors

DTD143EC Description

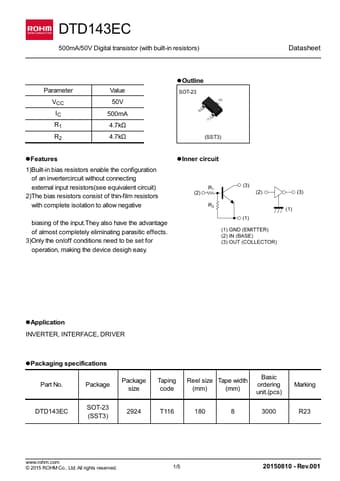

DTD143EC 500mA/50V Digital transistor (with built-in resistors) Parameter VCC IC R1 R2 Value 50V 500mA 4.7kΩ 4.7kΩ l.

DTD143EC Features

* 1)Built-in bias resistors enable the configuration 　 of an invertercircuit without connecting 　 external input resistors(see equivalent circuit) 2)The bias resistors consist of thin-film resistors 　 with complete isolation to allow negative lOutline SOT-23 　 　　 　 (SST3) 　 　 　 　　　　　　　　 lInner circ

📥 Download Datasheet

Preview of DTD143EC PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DTD143EC
Manufacturer
ROHM ↗
File Size
1.04 MB
Datasheet
DTD143EC_Rohm.pdf
Description
Digital transistors
